STRIKING DESIGN IN A

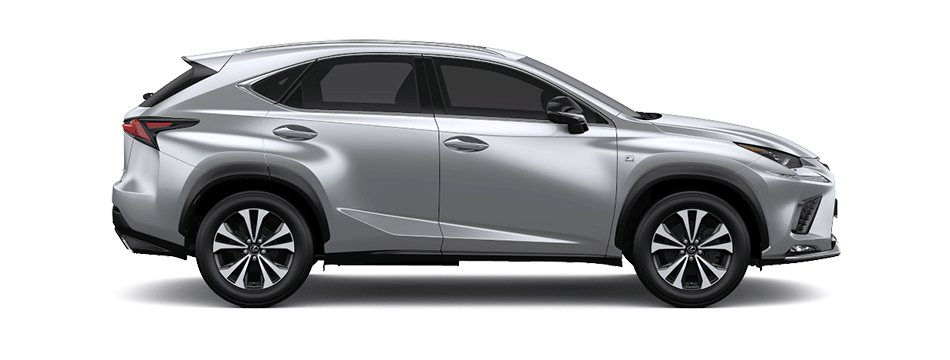

NX 300 F Sport












Vehicle specifications may vary by market. Contact your local dealer for more information.
Vehicle specifications may vary by market. Contact your local dealer for more information.
Comfort & Design
-
LARGEST MOON ROOF
The NX offers the largest outer-sliding moon roof in the world. The design features a one-touch auto close function, while fins and lips on the detractor reduce wind noise.
-
LED HEADLIGHTS
Lexus’s iconic L-shaped clearance lamps complement the LED headlights, so your vehicle is immediately recognizable as a Lexus.
-
WIRELESS CHARGING
If you have a Qi-compatible phone, the NX 300 F SPORT can charge it wirelessly with the available charging tray.
-
EXTRA SPACIOUS REAR SEATS
The distance between the NX’s front and rear seats comes in at an impressive 962 mm, topping Lexus’s competitors.
-
POWER REAR HATCH
Especially great for low-ceiling garages, the rear hatch’s memory function allows you to set an automatic stop position, so it never hits the ceiling.
-
MULTI-INFORMATION DISPLAY
A 4.2-inch multi-information screen next to the speedometer displays your tire pressure, fuel consumption and audio information at one glance.
-
ILLUMINATED HANDLES
A puddle lamp installed in the exterior door handle clearly shows you the handle’s location at night while throwing a pool of light around your feet.
EXCLUSIVE TO NX 300 F SPORT
-
F SPORT GRILLE
Unique to the NX 300 F SPORT, the L-mesh grille makes a bold design statement, coupled with a metallic-coated lower bumper molding, and black side mirrors to match.
-
SPORT SEATS
F SPORT seats feature integrated foaming technology to keep you firmly in place even during aggressive driving.
-
LFA-INSPIRED METERS
The F SPORT meter is the centerpiece of the NX 300 F SPORT dashboard, and directly inspired by the animated digital gauge in the LFA supercar.
-
PERFORATED FINISH
The cabin is decked out in dimpled leather with an exclusive perforated finish on the steering wheel and shift knob.
-
SPORT PEDALS
Invoking a touch of sportiness are the sleekly designed aluminum pedals, exclusive to F SPORT models.
-
18-INCH ALUMINUM WHEELS
The NX 300 F SPORT comes with 18-inch aluminum wheels with a glossy luminous finish, lending an aggressive presence on roads.
Performance
-
GRAVITY BALL SENSOR
A gravity ball sensor detects when the car is braking, accelerating or cornering, and finds and holds the right gear during that time.
-
DRIVE MODE SELECT
Select performance to match your driving style with four drive modes: NORMAL, ECO and SPORT
-
ADAPTIVE VARIABLE SUSPENSION
AVS continually adjusts shock-absorber damping rates while driving, delivering the type of smooth ride expected of a Lexus.
Safety
-
8 SRS AIRBAGS
Collision impact is greatly reduced with eight sensor-controlled SRS airbags lining the cabin, providing enhanced protection for all occupants.
-
WIDE ANGLE CORNERING LIGHTS
Wide angle lights provide you with additional illumination when taking corners and in low-visibility areas.
Specifications
TECHNICAL DATA
-
ENGINE
Engine Type 8AR-FTS 4 Cylinder, 2.5L, 16-valve , Dual VVT-I (intake) Displacement 1,998 cc Bore x Stroke 86.0 x 86.0 mm Compression Ratio 10 Max. Output 234hp
Fuel Consumption 10.5 L / 100km
CO₂ Emissions 119g /km
-
PERFORMANCE
Max. Speed 200 km/h Max. Torque 210 Nm / 4200 - 4400 rpm Acceleration 9.2 sec (0 - 100 km/h) -
CHASSIS
Brakes Front Ventilated Disc Brake Rear Disc Brake Suspension Front MacPherson Strut Rear Trailing Arm Double Wishbone Steering System Electric Power Steering -
MEASUREMENTS
Overall Length 4,640 mm Width (With mirrors) 2,130 mm
Width (Without mirrors) 1,845 mm
Height 1,645 mm Wheelbase 2,660 mm Tread Front 1,580 mm Rear 1,580 mm Min. Turning Radius (Tyre) 5.7 m Weight Curb Weight 1,785 - 1,905 kg Gross Vehicle Weight 2,395 kg Boot Capacity 475 L Fuel Tank Capacity 56 L -
HYBRID MOTOR AND BATTERY
Motor Type Permanent Permanent Magnet Synchronous Motor Max. Output (Front) 105 kW Max. Output (Rear) 50 kW Max. Torque (Front) 270 Nm Max. Torque (Rear) 139 Nm Battery Type NiMH Number of Battery Cells 204
IN-VEHICLE EQUIPMENT
-
COMFORT
Power Tilt and Telescopic Steering Column with audio controls and paddle shifters Auto Retractable electrochromic Wing Mirrors Electrochromic (EC) Inside Rear View Mirror Electrochromic (Auto-dimming) Inside Rear View Mirror Dual-Zone Independent Climate Control Seat air ventilation (Driver and front passanger) Seat Lumar Support Original Factory Fitted Upholstery Lexus F-Sport Leather 8-Way Power Adjustable Front Seats with memory Power back door -
INTUITIVE TECHNOLOGY
SMART Key Entry System SMART Start Ignition Cruise Control New Generation Lexus Remote Touchpad Interface Wireless Device Charger Rain-sensing Wipers Drive Mode Select (Eco, Normal, Sport, EV) 4 Door Handles with LED Illumination and Hidden Keyhole -
AUDIO & ENTERTAINMENT
USB Port / Audio Mini Jack AM/FM Tuner DVD Player Bluetooth Telephone Connectivity Lexus Display Audio with 8-inch Display Screen Lexus Premium Audio System with 8 Speakers -
SAFETY
Lighting Bi-LED Triple 'L' Headlamps Headlight Auto-leveling LED Daytime Running Lamps LED Front Fog Lamps + Cornering Lamps Headlamp Cleaner Airbag System 7 SRS Airbags Driver Multi-stage and Front Passenger's Dual Supplemental Restraint System (SRS) Airbags
Driver Knee Airbags Driver and Front Passenge Side Airbags Front and Rear Seat Curtain Shield Airbags Outboard rear seat anchor bars for fixing ISOFIX-Compliant Child seat Electronic Power Steering (EPS) Electronic Brake Distribution (EBD) Electronic Parking Brake (EPB) Brake Assist (BA) Vehicle Stability Control (VSC) Traction Control System (TCS) Anti-Lock Brake System (ABS) Tire Pressure Warning System (TPWS) Hill Start Assist Rear View Camera with Back Guide Monitor Lexus Parking Assist System with 8 Sensors Anti-Theft system with horn -
OTHERS
"Sun roof - Tilt & Slide moon roof" Perforated aluminum pedals Reclining / Folding Rear Seats 60/40 -
RIMS & TIRES
Bridgestone 225 / 60 R18 Aluminium Wheels Spare Tire
Vehicle specifications may vary by market. Contact your local dealer for more information.
